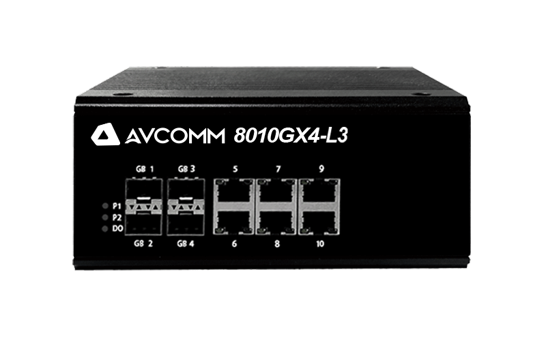

The 8010GX4-L3 is the first full Gigabit Managed Switch with Layer 3 routing functions. It gives you more flexibility in planning your large-scale IP network. 8010GX4-L3 supports various routing protocols such as IP/VLAN routing, RIP, OSPF, VRRP router redundancy, which are fully compatible with your backbone network. The 8010GX4-L3 provides 10-port full-gigabit Ethernet including 6-port Gigabit RJ45 and 4-port 100M/1G SFP, the switch provides reliable IP network with high performance. Advanced Cyber Security and redundancy features of 8010GX4-L3 guarantee the fastest network recovery, zero packet loss data transmission, and high level of network protection against the hackers’ attacks.
Full Gigabit Switching and Ultra-high Throughput
•10-port Full Gigabit Ethernet with 6-port RJ-45 and 4-port SFP
•16K MAC address table
•1.5MByte packet buffer memory for H.264 burst
•9K bytes jumbo frame
•Store-and-forward with non-blocking switch fabric
Dynamic Routing with Redundancy Protection
•RIPv1&v2, OSPFv1&v2 for intra-domain routing within an autonomous system
•Efficient unicast/multicast static routing
•VRRP guarantees sustainable routing in a single point of failure
ITU-T G.8032 v1/v2 ERPS Ring Redundancy
•An ITU standard Ring redundancy Protocol
•Provide sub-50ms protection and recovery switching for Ethernet traffic
•Interoperate with 3rd party industrial switch and still remain fast recovery time
•Interoperate with commercial switch instead of STP/RSTP
•Efficient network interconnection and topology with ERPS Chain, multiple chains
IEC62443-4-2 Level 3 / 4 Cyber Security*
•L2-L7 IPv4/IPv6 Access Control List (ACL)
•DHCP Snooping, IP Source Guard, Dynamic ARP Inspection
•802.1Q VLAN, Private VLAN, Advanced Port Security
•Multi-Level user passwords
•HTTPS/SSH/SFTP, 256-bit encryption
•802.1X MAB for non-802.1X compliant end devices
•RADIUS/TACACS+ centralized password authentication
Rugged Design for Wayside Surveillance
•EN50121-4 for railway trackside applications
•Top level EMC protection and excellent heat dissipation design for operating in -40°C~75°C environment
•IEC 61000-6-2/4 Heavy Industrial Environment
L3+ Management Features
•Various configuration paths, including WebGUI, CLI, SNMP and RMON
•IEEE 1588v1/v2 PTP time management
•LLDP topology control
•Software utility interface for LAN devices management
•NMS for individual component monitoring
