AP322A-EC-LR-AS923

    2,109.70 2,109.70 2109.7 USD

    2,109.70

    This combination does not exist.

    Add to Cart
    Related Documents:

    Industrial LoRaWAN Gateway, 2GbE+2COM LoRaWAN AS923: 923-923.5MHz (Must work with AP140-LR)


    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

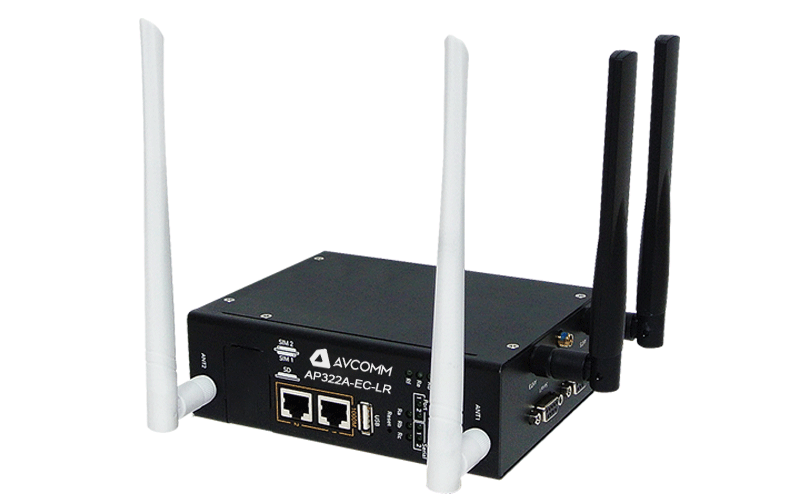

    The AP322A-EC-LR is a programmable cellular or Ethernet gateway for LoRaWAN communication. The Semtech S1301 supports LoRAWAN protocol for long range wireless connection to multiple LoRaWAN nodes. The AP322A-EC-LR Gateway provides for a solid out of the box experience for quick deployment. Additionally, since its software and UI sits on top of OpenWRT it is perfect for the development of custom applications (via the open SDK). The gateway comes with two software selectable RS-232/422/485 full-signal serial ports and two 10/100/1000 Mbps Ethernet ports. The built in Node-RED flow-based programming in the gateway provides reliable and secure gateway for data acquisition and processing at field sites as well as a user-friendly communication platform for many other large-scale deployments.


    Product Features:
    Programmable Edge Computer and  Gateway

    QCA9558 MIPS-based processor 720MHz  processor

    2 auto-sensing 10/100/1000 Mbps Ethernet ports

    SD socket for storage expansion

    Rich programmable LEDs and a programmable  button for easy installation and maintenance

    Node-RED flow-based programming

    High speed 4G LTE

    LTE Cat.4, 2x2 MIMO, 150M downlink and 50M  uplink

    LTE Cat.6 with 2CA, 2T2R MIMO provides 300M  downlink and 50M uplink

    4G/3G/2G full cellular network compatibility

    Support GPS for location services

    Serial Communication & High Throughput  Data Switching

    Dual serial ports with RS232/422/485 full functions for  serial over LTE/Wi-Fi/Ethernet data switching

    2-port Gigabit Ethernet supports routing and bridging mode

    Hardware NAT for CPU utilization saving*

    Cloud Management Service

    Support Amazon AWS & Microsoft Azure cloud service*

    Support proprietary ATMS cloud service*

    Interactive monitoring dashboard and map shows the  status, signal strength, location etc.*

     LoRaWAN Gateway
    Built-in LoRaWAN™ Server
    LoRaWAN™ 1.0.2 protocol
    LoRaWAN™ Frame filtering (node whitelisting)
    MQTT v3.1 Bridging with TLS encryption
    Software and UI sit on top of OpenWRT
    Buffering of LoRa frames in case of Network Server outage (no data loss) *
    Max. 1000 nodes
    Programming Environment
    GCC C/C++ cross development tool chain
    Ash, bash* System Shell
    vim, nano* text editor
    Lua, Perl*, Python* programming language
    Internet Security Suite and Cryptographic
    Netfilter suite for firewall
    Iptables suite for NAT/NAPT and port forwarding
    OpenVPN, IPsec for secure remote connection
    HTTPs/SSH for secure login
    AES, SHA, OpenSSL, random generator
    Rugged Design for Wayside Surveillance,
    ITS Application
    EN50121-4 railway trackside EMC certificate  design for Industrial IoT, ITS applications
    Effective heat dissipation design for operating in -40~75℃
    CE Marking
    IEC61000-6-2/IEC61000-6-4 heavy industrial EMC compliance
