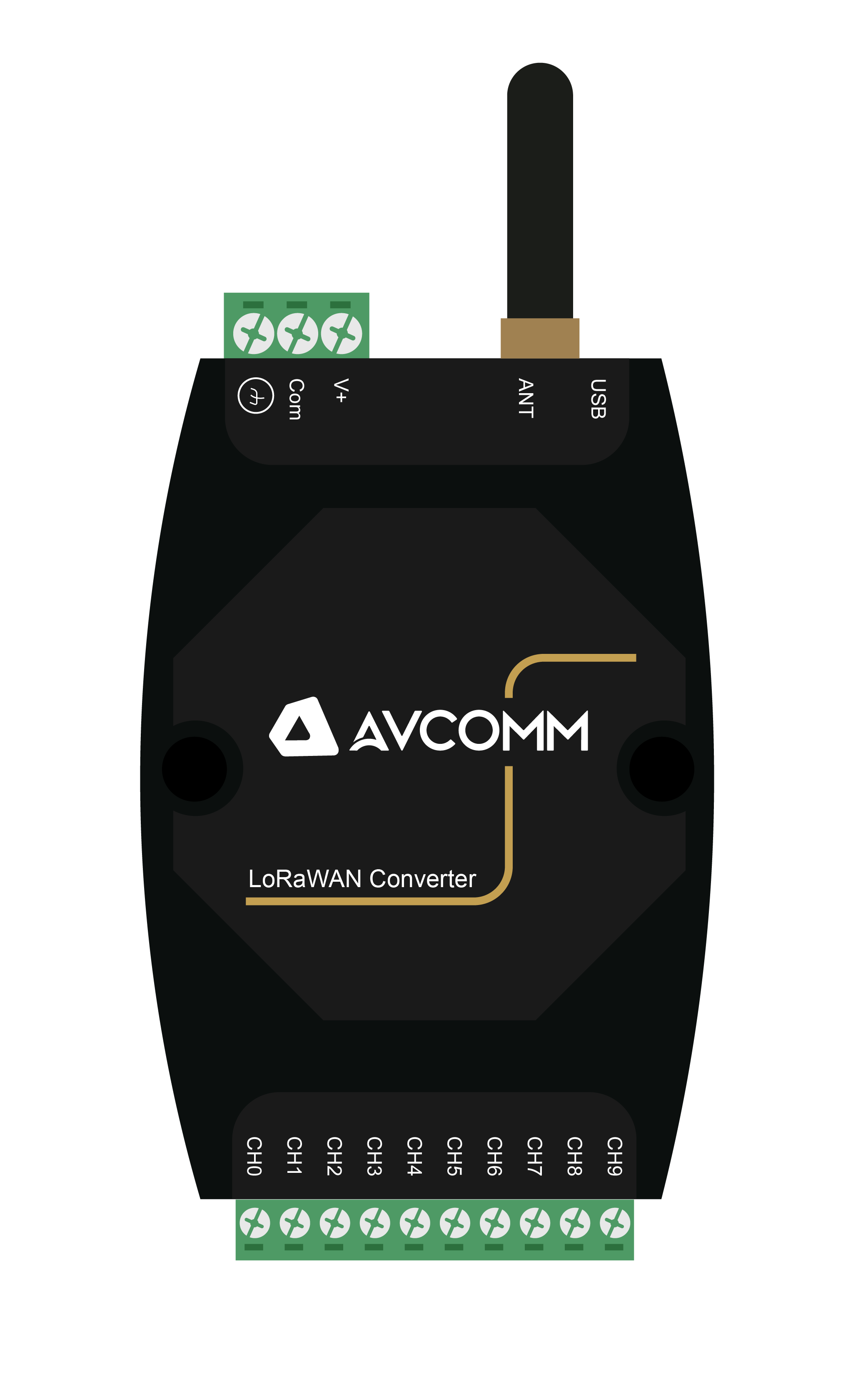

AP140-LR-EU868

The AP140-LR utilizes the latest Low Power Wide Area (LPWA) technology to build Modbus/RTU communication for long-distance, wide-coverage, and low power consumption wireless IoT applications. Multiple analog inputs are supported in AP140-LR, such as voltage, current and one RS-485 port for Modbus RTU Device connection. One AP140-LR can read more than 20 register entries from different field RTU devices in predefined time scheduling. The LoRaWAN wireless distance can reach up to 3-6KM distance depending on the environment. The AP140-LR offers great flexibilities in wireless IoT applications, such as environment sensors and meters reading for Smart City Applications such as Smart Farming, Smart Environment Monitor, etc.

Modbus/RTU to LoRaWAN

・Transmit RTU Data to LoRaWan Gateway

・Flexible RTU Device Address Settings

・Configurable Read Start Addresses

・Maximum 20 Entries for Time Schedule Report

Secured Radio Communication

・AES 128 Data Encryption

・Configurable Encryption Key – Modbus Register , WoMaster End-Node Utility

Windows© Configure Tools

・User-Friendly, Model Auto Detection

・Analog IO Parameter Read

・RTU Device Reading Parameter Setting

・Micro-USB Interface

Analog 4~20mA Input to LoRaWAN

・2 Channels Current Sensing, 0.3%High Accuracy

Analog 0~10V Input to LoRaWan

・2 Channels 0~10V High Impedance Input- Luminance Sensing or others

Industrial Application

・10~30V DC wide power range input

・Low Power Consumption

・Wide Coverage up to 6KM (Max)

・-40 ~ 75°C / 90%H Operating Temperature / Humidity

・Compliance IEC 61000-6-2/-6-4 Heavy Industrial EMC
