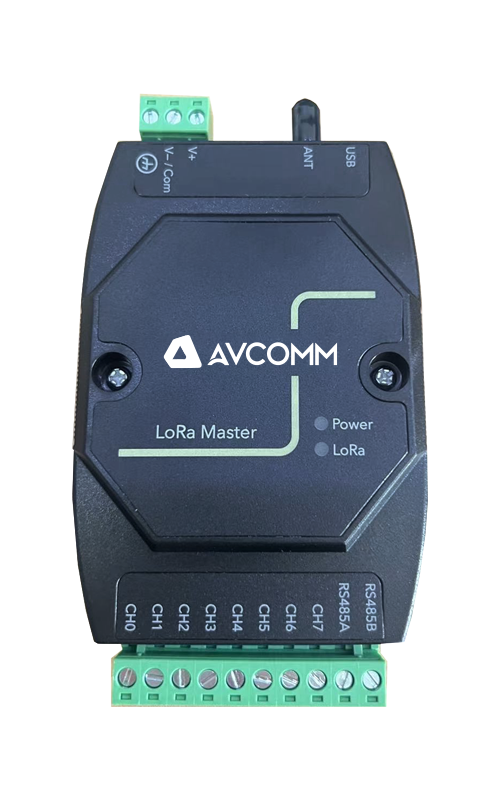

AP144-LC-400

$ 701,70 $ 701,70 701.7 USD

$ 701,70

Esta combinación no existe.

Agregar al carrito

Related Documents:

LoRa End-Node, 8CH AIO, 1 Modbus RTU 485 2-wire, 2 x 0~10V input, 2 x 4~20mA input, 1 x 0~10V Output, Open Collect (O.C.), 1 x 4~20mA Output, 1 x PWM Output (0~5V), 1 x PWM (0~10V), Open Collect (O.C.) Type, 1 x SMA /LoRa Antenna, 410~493 Mhz by software configuration
(Must work with AP100-LM or AP200-LM)

Términos y condiciones
30-day money-back guarantee
Shipping: 2-3 Business Days

The AP100-LM/AP144-LC utilizes the latest Low Power Wide Area (LPWA) technology to build Modbus/RTU communication for long-distance, wide- coverage, and low power consumption wireless IoT applications. Multiple analog inputs and outputs are supported in AP144-LC, such as voltage inputs and outputs, current inputs and outputs, PWM output and one RS-485 port for Modbus RTU slave. One AP100-LM RS485 Modbus RTU can connect up to 250pcs AP144-LC LoRa end nodes for two-way communications where field site analog signals are sent from AP144-LC and controlled by AP100-LM. The LoRa wireless distance can reach up to 3-6KM distance depending on the environment. The AP144-LC/AP100-LM offers great flexibility in wireless IoT applications, such as LED light control, environment sensors and meters reading for Smart City Applications such as Lighting, Smart Farming, Smart Environment Monitor, etc.

Product Features:

Modbus/RTU Extension by LoRa

・Transparent Two-Way Modbus Communication by LoRa

・AP100-LM Sends Modbus Control to AP144-LC LoRa End node

・AP144-LC Sends Modbus Data through AP100-LM Modbus Agent to Modbus Master Device

DMA – Auto Polling RTU function

・20 Sets Constant RTU Registers

・AP144-LC Auto Polling & Mapping in Memory

・Reduce re-transmission time & performance

Tradition Modbus/RTU Operating Mode

・Utilize Modbus/RTU protocol for LoRa Agent / LoRa

Node configure and communication

・Auto forward Modbus Data to Far-End node

・Auto re-present Far-End Modbus Data at Local Bus

Reliable LoRaMAC Radio Communication

・ECHO & Re-Send mechanism – LoRa Agent / LoRa Node

・Configurable Retransmit Mechanism- LoRa Agent

Secured Radio Communication

・AES 128 Data Encryption

・Configure Encryption Key by LoRa Utility

SF6~SF12 Configurable

・SF6, SF7,SF8, SF9,SF10,SF11,SF12

・Adjustable Spreading Factor for On-Air Reliability

0~10V Input / Output

・2 Channels 0~10V High Impedance Input- Luminance Sensing

・1 Channel 0~10V Open Drain Output, Dimmer Control

4~20mA Input / Output

・2 Channels Current Sensing, 0.3%High Accuracy

・1 Channel Current Output, 0.3% High Accuracy

PWM Output with Duty Cycle Control

・5V PWM Output / 10V Open Collect (O.C.)

・Duty Cycle Adjustable - 100Hz~1Khz , 0.2% Accuracy

RS485-Modbus/RTU

・Modbus/ RTU Slave Mode –AP100-LM

・Modbus/RTU Host Mode – AP144-LC

・2-Wires RS-485

・User-Friendly, Model Auto Detection

・Analog IO Parameter Read and Write

・Micro-USB Interface

Industrial Application

・10~30V DC wide power range input

・Low Power Consumption

・Radio Signal Coverage up to 6KM

・-40 ~ 75°C / 90%H Operating Temperature / Humidity

・EN 301489 / EN300220 / EN62368-1 Compliance
