APS-120-12

    293,21 293,21 293.21 USD

    293,21

    Esta combinación no existe.

    Agregar al carrito
    Related Documents:

    12V/10A,120W


    Términos y condiciones
    30-day money-back guarantee
    Shipping: 2-3 Business Days

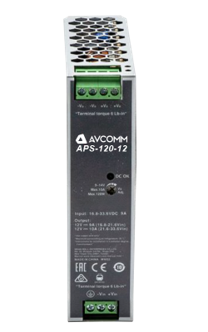

    APS-120-12 is a 120W DIN Rail type DC-DC converter with main features including DIN rail-type easy installation, ultra slim width (32mm), 2:1 wide input voltage, fanless design, -40~+70℃ wide operating temperature, 4KVdc  l/O isolation, 150% peak load, adjustable output voltage and full protective functions.

    APS-120-12 is 16.8~33.6V input and 12V output and can be used for industrial & railway control, security control, communication system and other fields. Suitable applications include DC buck/boost regulator, increasing system insulation level  and voltage drop compensation along cable etc.

    Compliance to BS EN/EN50155 and BS EN/EN45545-2  railway standard
    Width only 32mm
    2:1 wide input range
    -40~+70℃ wide working temperature
    150% peak load capability
    DC output adjustable
    Cooling by free air convection
    Can be installed on DlN rail TS-35/7.5 or 15
    Protections: Short circuit / Overload / Over voltage / Input reverse polarity  Input under voltage protection
    4KVdc l/O isolation(Reinforced isolation)
    3 years warranty
    Protections: Short circuit / Overload / Over voltage / Input reverse polarity  Input under voltage protection
    4KVdc l/O isolation(Reinforced isolation)
    3 years warranty
    Suitable for bus, tram, metro or railway system, industrial control system, semi-conductor fabrication equipment, factory automation, electro-mechanical, wireless network, telecom or datacom system
