    Industrial Unmanaged Ethernet Switch, 1x100/1000BaseX SFP port and 2x10/100/1000 BaseT(X) ports, DIN Rail, 12/24/48VDC(10 to 60VDC) &24VAC (18 to 30VAC) single power input, -40°C to +75°C

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

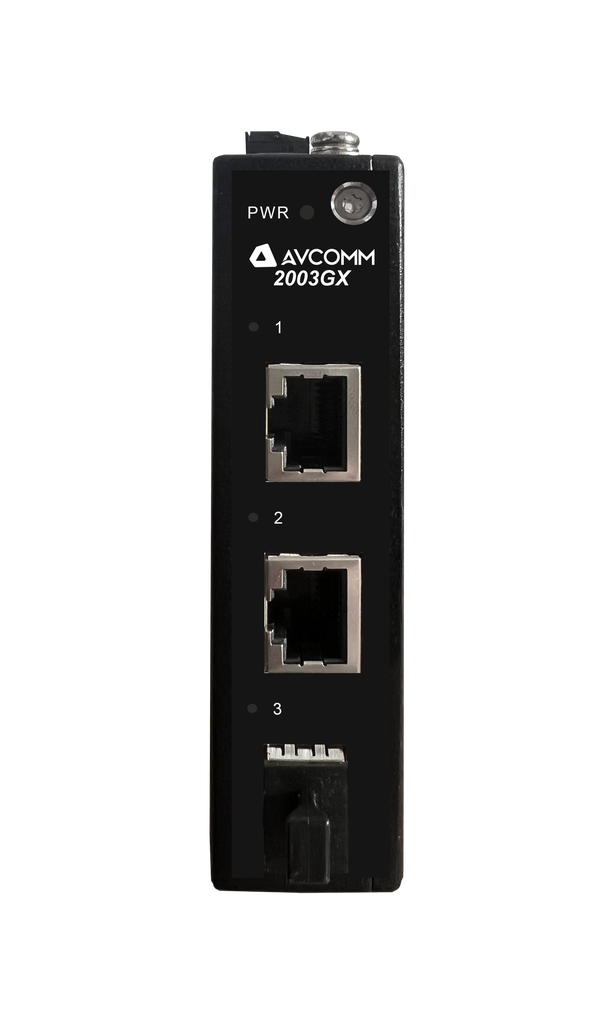

    2003GX have 1x100/1000BaseX SFP Port and 2x10/100/1000BaseT(X) Ports, which are ideal for  applications that require simple industrial Ethernet connections. To provide greater versatility for use with  applications from different industries, the 2003GX also allows users to enable or disable the Quality of  Service (QoS) function, and broadcast storm protection (BSP) with DIP switches on the outer panel. In addition, 2003GX has a rugged metal housing to ensure suitability for use in industrial. 2003GX has a 12/24/48 VDC & 24VAC single power input, DIN-rail mounting, and high-level  EMI/EMC capability. In addition to its compact size, 2003GX has passed a 100% burn-in test to en−  sure it will function reliably after it has been deployed.

    Product Features:
    Fast Ethernet Switching
    ・ 1x100/1000BaseX SFP port and 2x10/100/1000 BaseT(X) ports
    ・4K MAC address table
    ・Store and forward
    IEEE 802.3u EEE Power Management
    ・Ultra low power design, 5W when full loading
    ・Energy Efficient Ethernet for low power requirement・Idle power saving mode for energy efficiency
    Rugged Mechanical Design
    ・Robust design protects from mechanical deformation
    ・IP30 ingress protection to withstand harsh environment
    ・Wide operating temperature range -40°C ~ +75°C
    ・IEC61000-6-2/IEC61000-6-4 heavy industrial EMS
    Power protection
    ・Provide overload protection
    ・Provide reverse connection protection
    ・Provide DC&AC  power input
