408FXE2-ST-40-HV

$ 616.30 $ 616.30 616.3000000000001 USD

$ 616.30

This combination does not exist.

Add to Cart

Related Documents:

8-Port Industrial Unmanaged Ethernet Switch, 6 RJ45 10/100BaseT(X), 2 100BaseFX (Singlemode, ST style connector, 40Km) , DIN-Rail, Dual Power Input 90-264VDC, -40°C-85°C

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

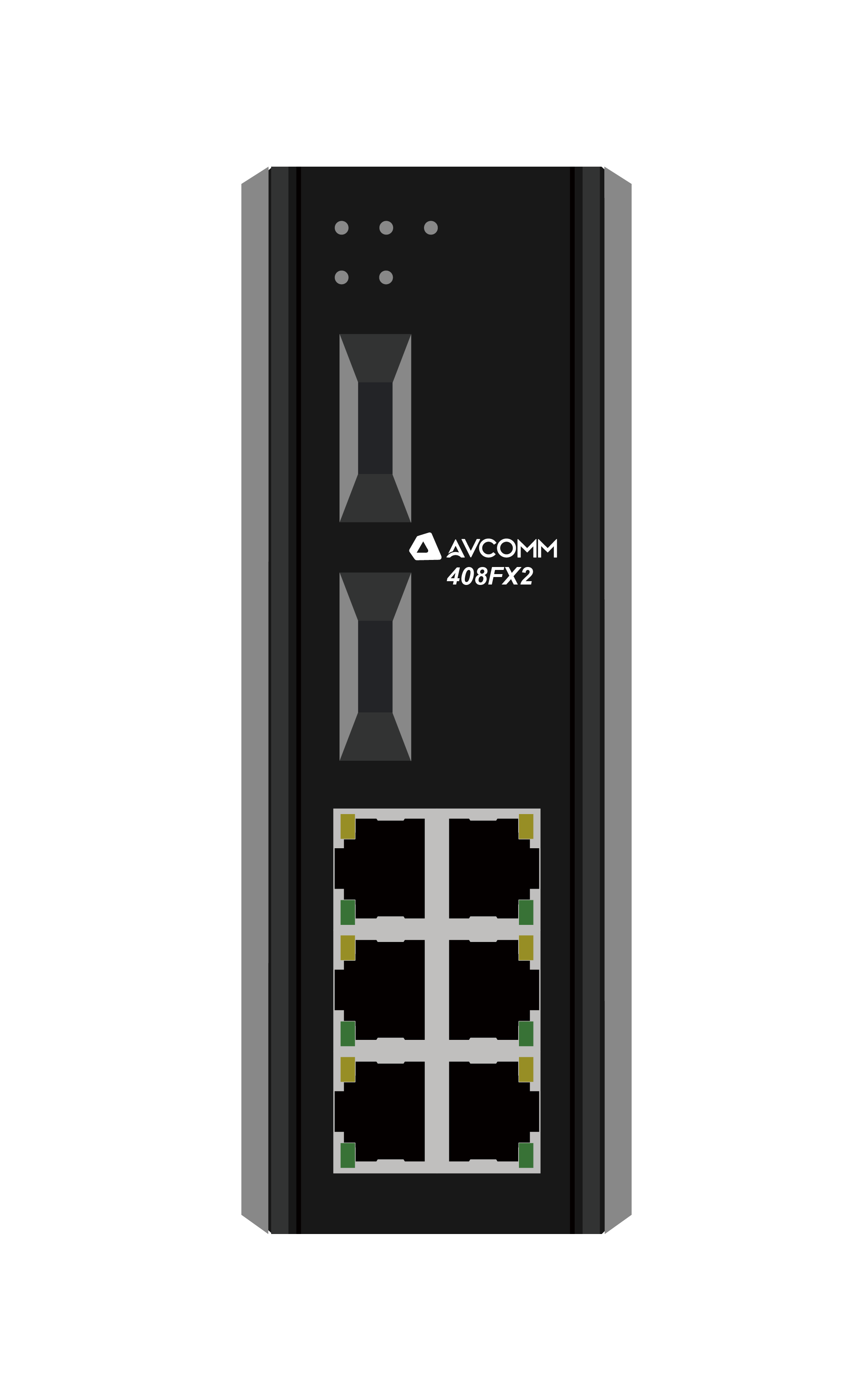

AVCOMM 408FX is a 8-port plug and play fast unmanaged Ethernet switch with reverse polarity protection of AC or DC input for automation and electrical OEM purpose. It has wide operation temperature range, high EMC performance to ensure stable work in harsh industrial environments and supports DIN Rail-mounted/wall-mounted to facilitate in various industrial network applications. AVCOMM 408FX is suitable for industrial applications such as industrial automation, intelligent transportation, video surveillance, and electrical OEMs.

Fast Ethernet Switching

・Seven(7) 10/100BaseT(X) RJ-45 ports and one(1) 100BaseFX port (SC ST FC optional)

・2K MAC address table

・Store and forwarding with non-blocking technology

IEEE 802.3u EEE Power Management

・Ultra power consumption efficiency, 3.6W fully loaded

・Energy Efficient Ethernet for low power requirement・Idle power saving mode for energy efficiency

Rugged Mechanical Design

・Robust design protects from mechanical deformation

・IP40 industrial rating to withstand harsh environments

・Wide operating temperature range -40°C ~ +85°C

・IEC61000-6-2/IEC61000-6-4 heavy industrial EMS

Power protection

・Provide overload protection

・Provide reverse connection protection

・Provide multiple power input options,AC or DC or HV
