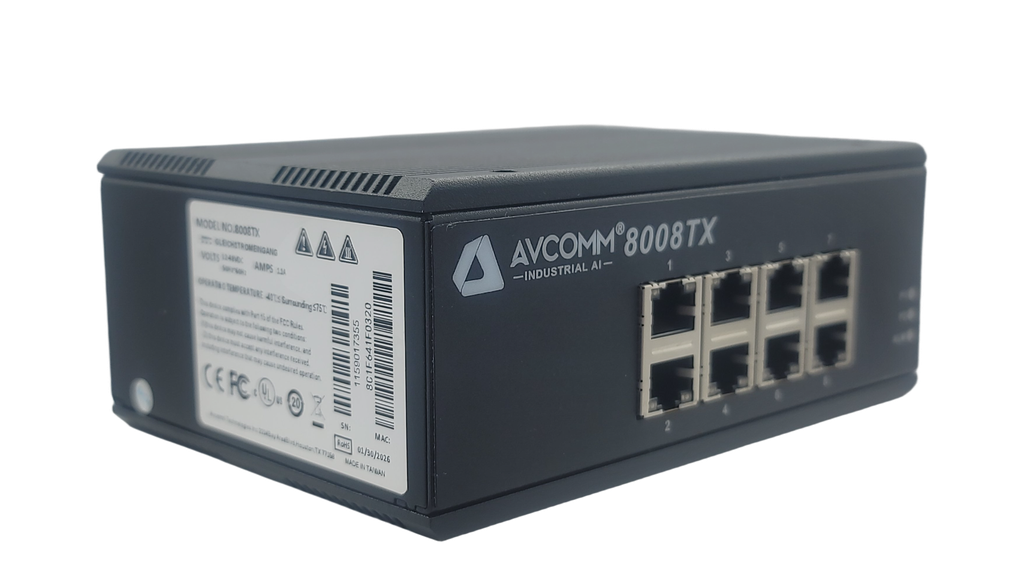

    8008TX

    8-Port Gigabit L2 Managed Industrial Ethernet Switch (8×RJ45)

    Product Information

    Parameter Specification
    Vendor AVCOMM Technologies
    Model 8008TX
    Series 8000 Series
    Management Type L2 Managed

    Product Overview

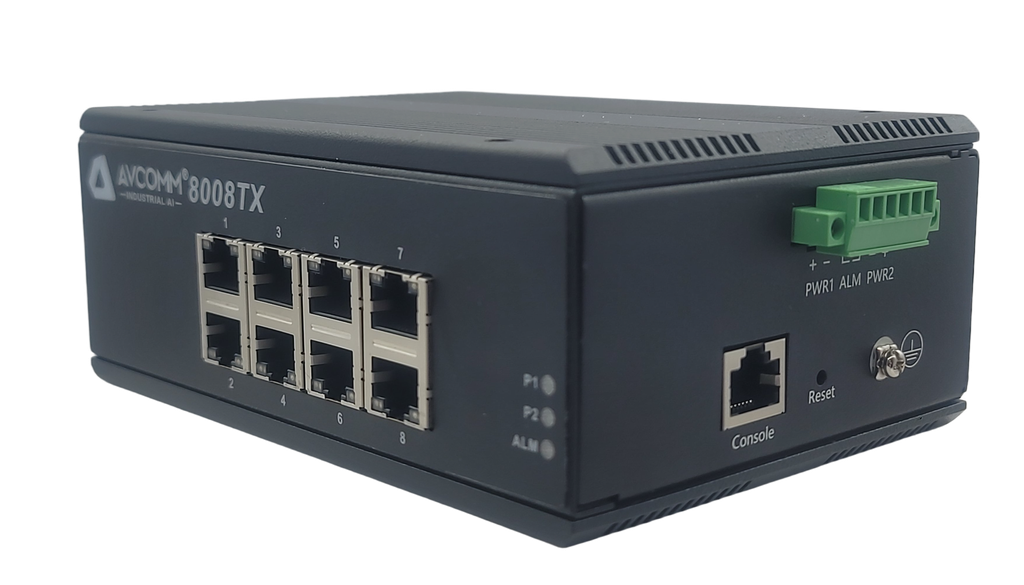

    The AVCOMM 8008TX is a 8-port Gigabit L2 managed industrial Ethernet switch featuring 8 × 10/100/1000Base-T, purpose-built for industrial applications. The device supports comprehensive Layer 2 management features including IGMP Snooping, IEEE 802.1Q VLAN, QoS, port mirroring, and IEC62439-based ERPSv2 Plus ring redundancy protocol. It also supports IEEE 1588 PTPv2 and gPTP (TSN) precision time synchronization. Die-cast aluminum enclosure with fanless design, -40°C to +75°C wide-temperature operation for harsh industrial environments.

    Technical Specifications

    Port Configuration

    Parameter Specification
    Total Ports 8

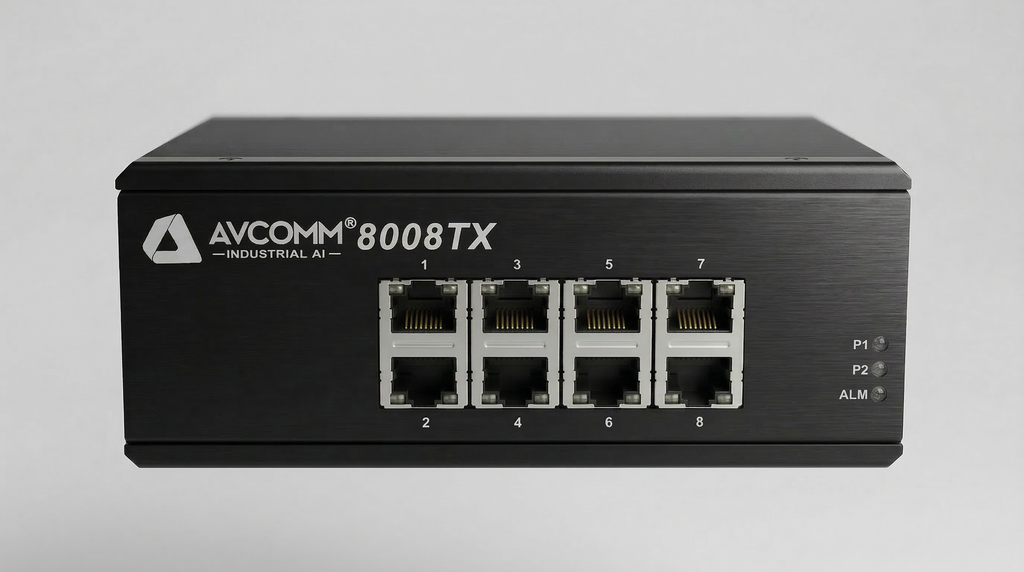

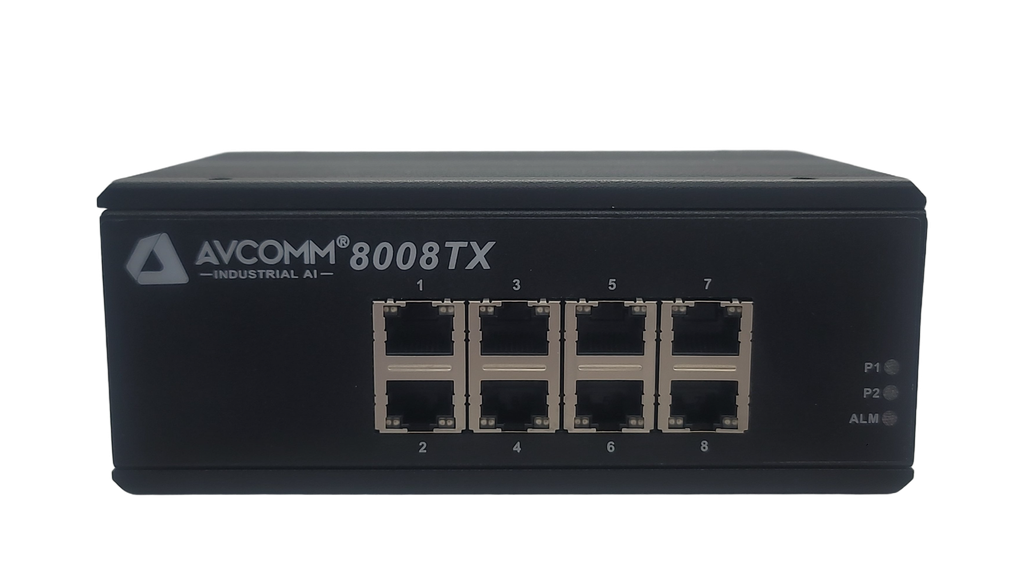

    RJ45 Ports 8 × 10/100/1000Base-T
    SFP Ports -
    Console Port 1 × RJ45 CLI Management

    Hardware Performance

    Parameter Specification
    Switching Capacity 52 Gbps
    Forwarding Rate 148,800 pps per 100M port; 1,488,000 pps per GE port
    MAC Address Table 8K
    Packet Buffer 4 Mbits (0.5 MB)
    VLAN Count 4K (4096)
    Jumbo Frame Supported
    Switching Architecture Parallel Store and Forward

    Power Specifications

    Parameter Specification
    Input Voltage 12VDC-48VDC, Dual input

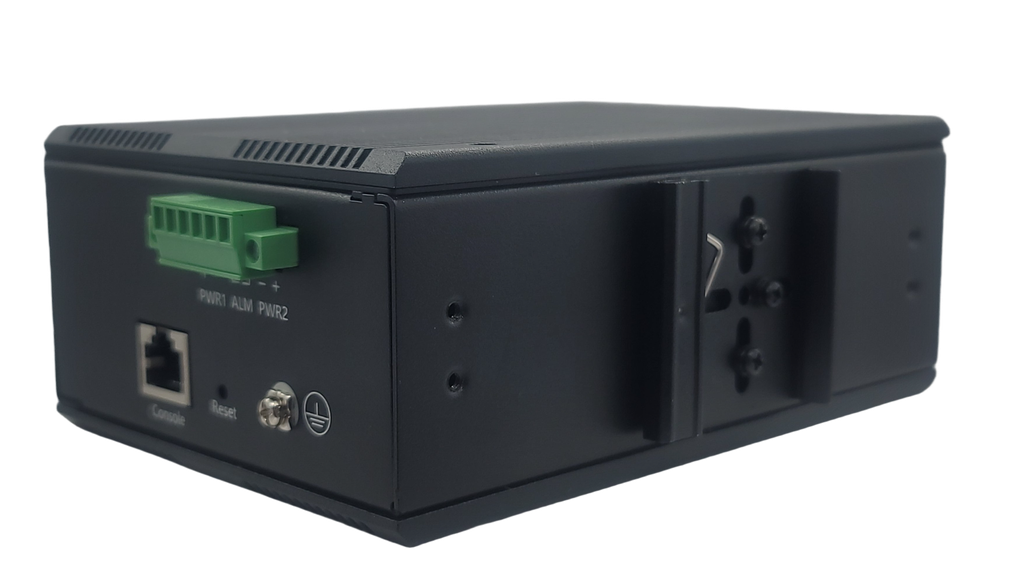

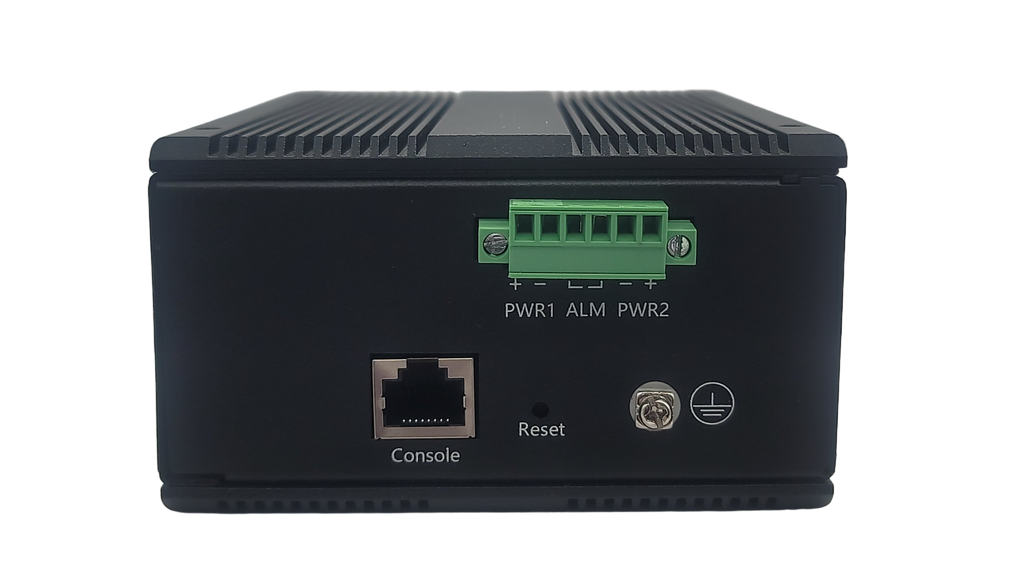

    Connector 1 × Removable 5-PIN Terminal
    Power Consumption ≤5W
    Power Redundancy Supported (Dual input)
    Overload Protection Supported
    Reverse Polarity Protection Supported

    Environmental Specifications

    Parameter Specification
    Operating Temperature -40°C to 75°C
    Storage Temperature -40°C to 85°C
    Humidity 5%-95% (non-condensing)

    Physical Specifications

    Parameter Specification
    Dimensions (W×H×D) 60 × 155 × 110 mm (W × H × D)
    Weight ≤0.7 kg
    IP Rating IP41

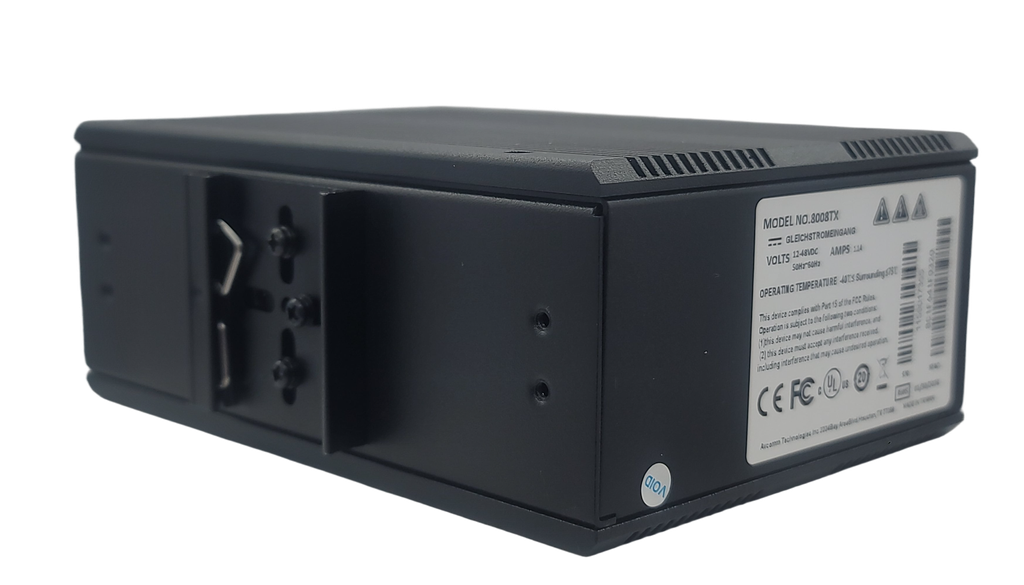

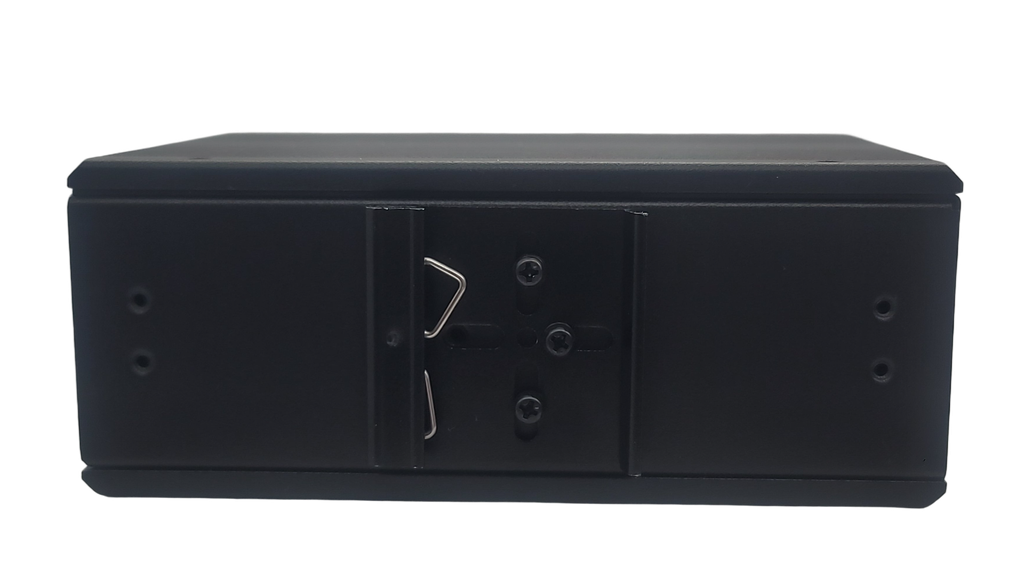

    Installation DIN-Rail
    Enclosure Die-cast Aluminum Alloy
    Cooling Fanless passive cooling
    MTBF ≥500,000 hours (~51.7 years)

    Software Features

    VLAN Features

    Parameter Specification
    IEEE 802.1Q VLAN Supported
    Port-based VLAN Supported
    GVRP Supported
    VLAN Count 4K (4096)

    Redundancy Features

    Parameter Specification
    STP IEEE 802.1D
    RSTP IEEE 802.1w
    MSTP IEEE 802.1s
    Ring Protocol ERPSv2 Plus (IEC62439-based)
    Link Aggregation IEEE 802.3ad LACP + Static Trunk

    Multicast

    Parameter Specification
    IGMP Snooping Supported
    GMRP Supported
    IPv4/IPv6 Multicast Supported

    QoS

    Parameter Specification
    IEEE 802.1p Supported
    TOS/DiffServ Supported (RFC 2474/2475/2597/2598)
    Priority Queues per Port 8

    Time Synchronization

    Parameter Specification
    NTP Supported (NTPv1/v2, RFC 1059/1119)
    IEEE 1588 PTP Supported (PTPv2 Precision Time Protocol)
    TSN Supported（gPTP)

    Other Features

    Parameter Specification
    Storm Control Supported
    Port Mirroring Supported
    Flow Control IEEE 802.3x
    Jumbo Frame Supported

    Security Features

    Parameter Specification
    IEEE 802.1X Supported
    RADIUS Supported (RFC 2138/2139/2865)
    SSH SSH2
    SNMPv3 Supported
    CHAP RFC 1994
    ESP 3DES RFC 1851

    Management Features

    Parameter Specification
    Web Management Supported
    CLI Supported (Serial)
    Telnet Supported (RFC 854)
    SNMP SNMPv1/v2c/v3
    HTTP RFC 2068
    DHCP Server Supported
    DHCP Relay Supported (RFC 1542, RFC 3046)
    MIB MIB-II, SMIv2, MAU MIB, Ping MIB
    Diagnostics LEDs, Log files, Port mirroring, TRAP

    Certifications & Standards

    Product Safety

    CE, CB, IEC, IECEE, IEC/EN62368-1, FCC Part 15 Subpart B Class A, RoHS Compliance

    EMI

    FCC 47 CFR Part 15 Class A, EN55032 Class A, EN55035 Class A

    EMS

    Test Item Standard Level
    ESD IEC(EN)61000-4-2 Level 4
    EFT IEC(EN)61000-4-4 Level 3
    Surge IEC(EN)61000-4-5 Level 4
    Voltage Dips/Interruptions IEC(EN)61000-4-11 Level 4
    Oscillatory Waves IEC(EN)61000-4-12 Level 3

    Mechanical Tests

    Test Item Standard
    Vibration IEC 60068-2-6
    Shock IEC 60068-2-27
    Free Fall IEC 60068-2-31
    PCB IPC Compliant

    Industry Certifications

    Industry Standard Status
    Hazardous Location UL/cUL1604 Class 1 Div 2 Pending
    Transportation JT/T817-2011; NEMA-TS2 Pending
    Railway EN50121-4 Certified
    Power Utility IEC61850-3, IEEE1613 (C37.90.x) Certified
    Industrial Control UL/cUL61010 Certified
    Marine GL Pending

    Ordering Information

    Model Description
    8008TX L2 Managed Industrial Switch, 8 × 10/100/1000Base-T , IP41, -40~+75°C, 12VDC-48VDC dual input
