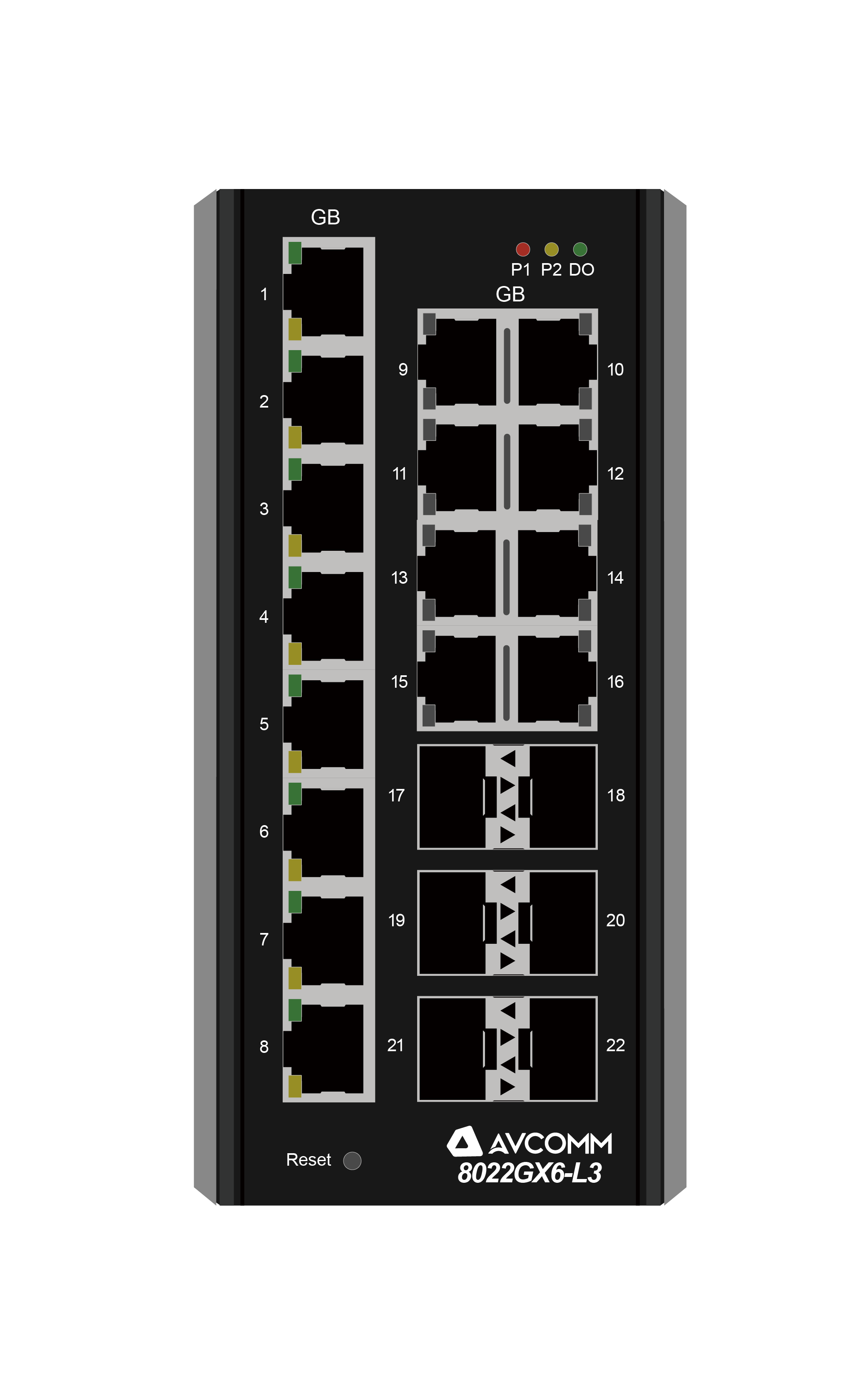

8022GX6-L3-6SX-PS

8022GX6-L3 series is designed for industrial environments requiring high security and high quality Ethernet/Fiber communication, such as industrial automation, road traffic control, etc. 8022GX6-L3 provides 22-port full-gigabit Ethernet including 16-port Gigabit RJ45 and 6-port 100M/1G/2.5G SFP. 8022GX6-L3 provides wire-speed switching, Cyber Security, network redundancy…L3+ management software features. Full Gigabit capability and rugged industrial design ensures system high performance and reliability in harsh environments. For convenient traffic control and zero packet loss data transmission, the switch offers contemporary management and security functions.

High performance CPU & Full Gigabit Switching

•Powerful 1.2GHz ARM Cotex-A9 processor

•Non-blocking switch fabric design

•22-port Full Gigabit Ethernet ports, including 16 Gigabit RJ45 and 6 100/1000M/2.5G* SFP.

•8 flexible Class of Service(CoS) queues

•16K MAC address table

•9Kb Jumbo Frame

•Fiber ports support both 100M and 1000M SFP

•DDM function for fiber connectivity monitoring

•Up to 15Gbps Link Aggregation with 2.5G* SFP

•Energy-Efficient Ethernet for power saving

IEC62443-4-2 Level 3 / 4 Cyber Security

•802.1X/RADIUS port-based access control

•IP Security/Port Security

•HTTPs/SSH Management IP secure access

•Supports advanced cyber security features, 802.1X MAB, TACAS+, DHCP Snooping, IP Source Guard, Dynamic ARP Inspection, advanced Port Security & L2-L7 Access Control List

ITU ERPSv2 PLUS Ring Technology

•ITU G.8032 v1/v2 ERPS Ring Redundancy & HW-based CFM for quick acknowledgement while GbE copper link failure, providing 20ms recovery time and seamless restoration.

•ERPSv2 available to replace legacy Ring + Chain + Dual Homing

•Inter-Operability with 3rd party industrial switch and still remain fast recovery time.

•Support Enhanced RSTP for large ring network topology with up to 80 switches

L3+ Management Switch Features

•Various configuration paths, including WebGUI, CLI, SNMP, Modbus TCP, LLDP topology control

•Layer 3 Switch features include VLAN, QoS, LACP/Trunk, Rapid Spanning Tree protocol…etc

•IGMP Snooping v1/v2/v3, IGMP Query, 512 L2 Multicast Groups for video applications

•Built-in DHCP Server that automatically provides and assigns IP addresses, default gateways to clients

Industrial IoT LAN & Cloud Management

•Support Software Utilities:

    -ANMS Network Management System

    -AIAS for Configuration Management

•Support Modbus TCP for monitoring in field

Rugged Design for Wayside Network Switching with Wide Power Input Range

•10~60V wide power range design with redundant power input

•Excellent heat dissipation design for operating in -40~75oC environments

•High level EMC protection exceeding traffic control and heavy industrial standards’ requirements

•IEC 61000-6-2/4 Heavy Industrial Environment
