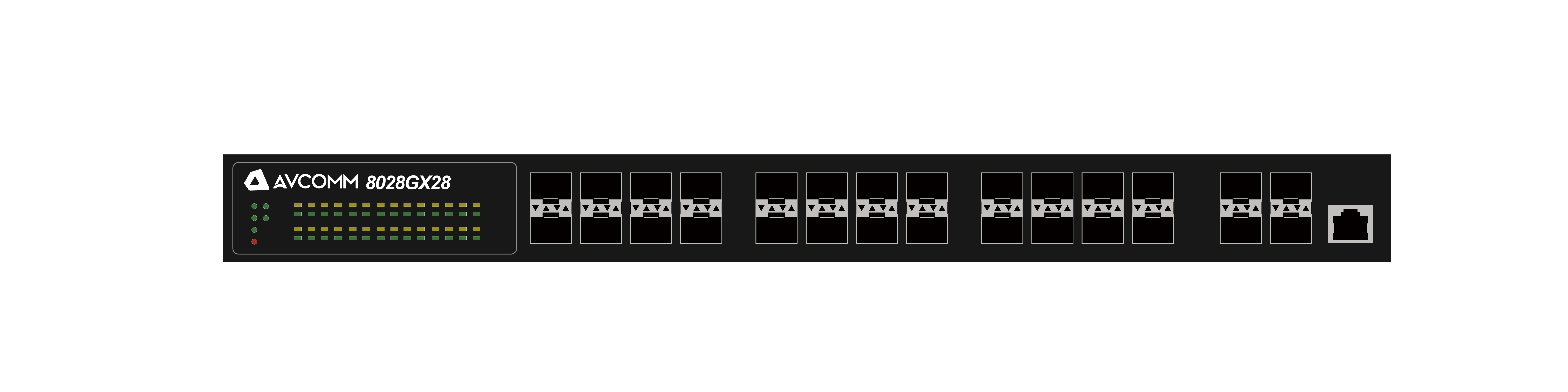

AVCOMM 8028GX28 are rack-mount type Ethernet switches, equipped with 4 x10G ports & 24 Gigabit Ethernet ports. With flexible combination of copper and fiber port options, 8028GX28 delivers high quality, wire-speed L2 routing performance, advanced features such as powerful VLAN operation, Police-based traffic manage & security, and intelligent management design, to fulfill different application scenario. It provides the scalability, flexibility & reliability for large network structure, and is also an ideal solution of L2 routing off-load for core network.
•Up to 24 100/1000BaseSFP slots plus 4 10G SFP+ slots.
•Gigabit ports options: 24 10/1000Base SFP slots, or 8 Gigabit Copper ports plus 16 100/1000BaseSFP slots, or 16 Gigabit Copper ports plus 8 100/1000BaseSFP slots, or 24 10/100/1000BaseT copper ports.
•9K Jumbo frames
•L2 wire-speed switching
•Network redundant LACP, Spanning tree STP, RSTP & MSTP, and quick Ring fail -over protection (< 20 ms)
•Support Single & multiple rings
•Advanced VLAN operations: IEEE 802.1ad/QinQ VLAN, VLAN tag add/remove/replace
•Private VLAN, port-based /tag-based/protocol-based VLAN
•Multicasting support IGMP v1/v2/v3, proxy & snooping
•Security: IEEE 802.1x authentication, RADIUS & TACACS+ AAA (pending)
•Policy-based traffic control engine for actions of Deny, Allow, Queue mapping, rate limit, mirror, or CoS remark on any combination of specific Layer -2 /Layer- 3 / Layer-4 patterns
Multiple Fiber ports
•QoS (SPQ,WRR, SPQ+ WRR): Hierarchical per-port, per queue shaping & scheduling with bandwidth management
•IEC 61850-3 / IEEE 1613 compliant
