AP322A-EC

    923.16 923.16 923.16 USD

    923.16

    This combination does not exist.

    Add to Cart
    Related Documents:

    Industrial Edge Computing Secure Serial Server, 2GbE+2COM, USB, SD


    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

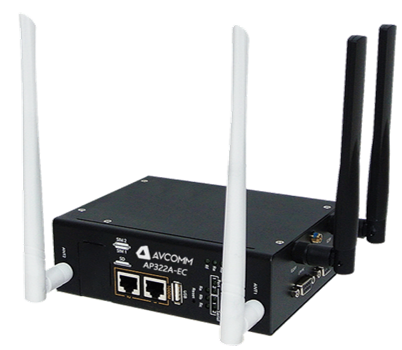

    AVCOMM AP322A-EC edge computing platform is designed for embedded data acquisition applications. The computer comes with two software selectable RS-232/422/485 full-signal serial ports and two 10/100/1000 Mbps Ethernet ports. These versatile communication capabilities let users efficiently customize for a variety of complex communication applications. The QCA9558 MIPS-based processor  that is widely applicable to a variety of industrial solutions. The built in Node-RED flow-based programming in the tiny embedded computer provides reliable and secure gateway for data acquisition and processing at field sites  as well as a user-friendly communication platform for many other large-scale deployments.

    Product features:
    Programmable Edge Computer and  Gateway
    QCA9558 MIPS-based processor 720MHz processor
    2 auto-sensing 10/100/1000 Mbps Ethernet ports
    SD socket for storage expansion
    Rich programmable LEDs and a programmable button for easy installation and maintenance
    Node-RED flow-based programming
    Serial Communication & High Throughput Data Switching
    Dual serial ports with RS232/422/485 full functions for serial over LTE/Wi-Fi/Ethernet data switching
    2-port Gigabit Ethernet supports routing and bridging mode
    Hardware NAT for CPU utilization saving*
    Internet Security Suite and Cryptographic
    Netfilter suite for firewall
    Iptables suite for NAT/NAPT and port forwarding
    OpenVPN, IPsec for secure remote connection
    HTTPs/SSH for secure login
    AES, SHA, OpenSSL, random generator
    Cloud Management Service
    Support Amazon AWS & Microsoft Azure cloud service*
    Support proprietary ATMS cloud service*
    Interactive monitoring dashboard and map shows the  status, signal strength, location etc.*
    High speed 4G LTE & Wi-Fi Network
    LTE Cat.4, 2x2 MIMO, 150M downlink and 50M uplink
    LTE Cat.6 with 2CA, 2T2R MIMO provides 300M downlink and 50M uplink
    4G/3G/2G full cellular network compatibility
    Support GPS for location services
    IEEE 802.11ac compliant & backward compatible with 802.11a/b/g/n
    Selectable 5G/2.4G Wi-Fi for local coverage, up to 866Mbps bandwidth
    Programming Environment
    GCC C/C++ cross development tool chain
    Ash, bash* System Shell vim, nano* text editor
    Lua, Perl*, Python* programming language
    Optional software kit for IEC 60870–5–101, IEC 60870–5–104
    Rugged Design for Wayside Surveillance, ITS Application
    EN50121-4 railway trackside EMC certificate design for Industrial IoT, ITS applications
    Effective heat dissipation design for operating in -40~75oC environments
    CE Marking
    IEC61000-6-2/IEC61000-6-4 heavy industrial EMC compliance
