8028GX8-AC2-2LX-10


8028GX8-AC2,w/ 2 AVC-SFP-LX-10


Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

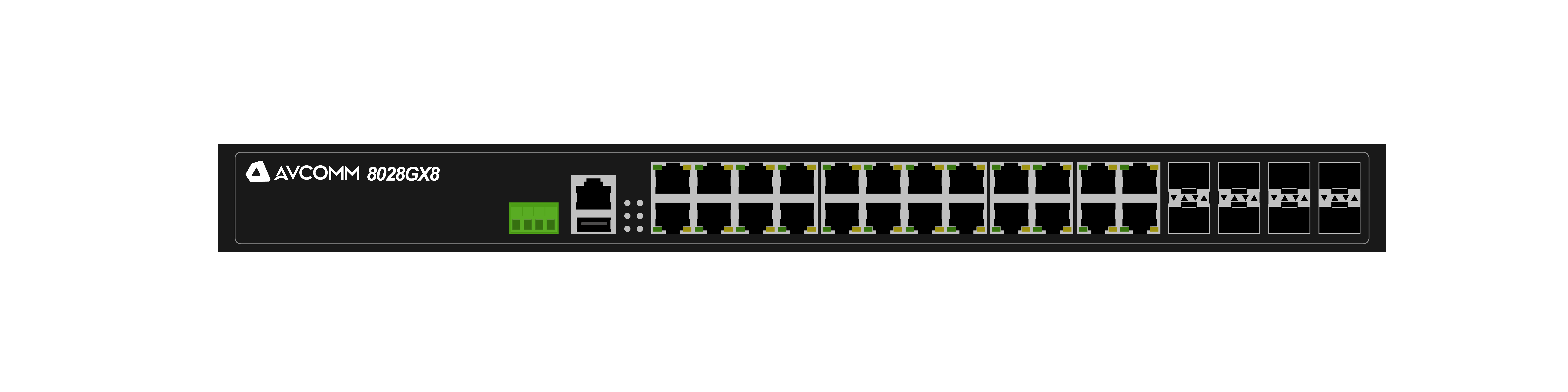

8028GX8 is a power substation compliant rackmount 28G switch  with 20 Giga copper ports, 4 Giga combo ports and  4x100M/1G/2.5G fiber SFP ports. Up to 8 fiber Giga ports help to  link more field switches with long distance fiber connections. The  28 full giga ports enhance the overall throughput for industrial  control room applications. Rugged design and high EMC  immunity makes 8028GX8 an ideal solution for roadside and  power substation applications.

High Throughput Ethernet Switching
28-port Full GbE, by 24-port GbE RJ45 and 4-port GbE RJ45/SFP Combo, and 4 100M/1G/2.5G  SFP fiber ports
Up to 24 GbE copper RJ-45 ports
Up to 8 100M/1G/2.5GbE fiber ports add more  fiber links to field switches
DDM function for high quality fiber connectivity monitoring Powerful 1.2GHz ARM Cotex-A9 processor
Less than 12.5W power consumption at full loading
Energy-Efficient Ethernet for power saving
Non-blocking switch fabric design
8 flexible Class of Service(CoS) queues, 512 L2  Multicast Groups for video applications
16K MAC address table, 9Kb Jumbo Frame

ITU-T G.8032 v2 ERPS Ring Redundancy

ITU-T G.8032 v1/v2 ERPS Standard Ring  Redundancy protocol

Supports HW-based CFM transmission for  overcoming GbE copper physical limitation and  providing minimum 20ms recovery time,  seamless restoration time

Inter-Operability with 3rd party industrial switch  and still remain fast recovery time

Replace Ring + Chain + Dual Homing

Enhanced RSTP(eRSTP)
Enhance the RSTP fault recovery time performance
Enhance RSTP performance for large ring network  topologies with up to 80 switches
IEC62443-4-2 Level 3 / 4 Cyber Security
L2-L7 IPv4/IPv6* Access Control List (ACL)
DHCP Snooping, IP Source Guard, Dynamic ARP  Inspection
802.1Q VLAN, Private VLAN, Advanced Port Security
Multi-Level user passwords
HTTPS/SSH/SFTP, 256-bit encryption
802.1X MAB for non-802.1X compliant end devices
RADIUS/TACACS+ centralized password  authentication
Industrial IoT LAN & Cloud Management
Various configuration paths, including CGI WebGUI, CLI,  SNMP and RMON
Support AVCOMM Software Utilities:
 -ANMS Network Management System
 -AIAS for Configuration Management
 -ANMS*, ATMS OTA* for device management over
 Cloud*
Support MQTT* protocol, ready to use AWS/Azure and  Private Cloud Agent for cloud management
LLDP for topology control, auto-topology drawing
USB for easy field configuration and firmware update
Rugged Design for Industrial Control Room  and Wayside Network Switching
IEC61850-3/IEEE1613 compliance for power  substation applications
Seamless forwarding while EMC attack*
Excellent heat dissipation design for operating in      -40~75oC environments
High level EMC protection exceeding traffic control  and heavy industrial standards’ requirements
EN50121-4 railway trackside EMC
IEC 61000-6-2/4 Heavy Industrial Environment
