    Industrial Secure Wireless Edge Computer, 2GbE+2COM, USB, SD, 802.11ac/n WLAN (with WiFi antennas)

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

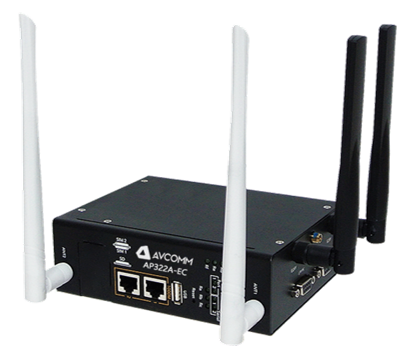

    AVCOMM AP322A-EC edge computing platform is designed for embedded data acquisition applications. The computer comes with two software selectable RS-232/422/485 full-signal serial ports and two 10/100/1000 Mbps Ethernet ports. These versatile communication capabilities let users efficiently customize for a variety of complex communication applications. The QCA9558 MIPS-based processor  that is widely applicable to a variety of industrial solutions. The built in Node-RED flow-based programming in the tiny embedded computer provides reliable and secure gateway for data acquisition and processing at field sites  as well as a user-friendly communication platform for many other large-scale deployments.

    Product features:

    Programmable Edge Computer and  Gateway

    ・QCA9558 MIPS-based processor 720MHz processor

    ・2 auto-sensing 10/100/1000 Mbps Ethernet ports

    ・SD socket for storage expansion

    ・Rich programmable LEDs and a programmable button for easy installation and maintenance

    ・Node-RED flow-based programming

    Serial Communication & High Throughput Data Switching

    ・Dual serial ports with RS232/422/485 full functions for serial over LTE/Wi-Fi/Ethernet data switching

    ・2-port Gigabit Ethernet supports routing and bridging mode

    ・Hardware NAT for CPU utilization saving*

    Internet Security Suite and Cryptographic

    ・Netfilter suite for firewall

    ・Iptables suite for NAT/NAPT and port forwarding

    ・OpenVPN, IPsec for secure remote connection

    ・HTTPs/SSH for secure login

    ・AES, SHA, OpenSSL, random generator

    Cloud Management Service

    ・Support Amazon AWS & Microsoft Azure cloud service*

    ・Support proprietary ATMS cloud service*

    ・Interactive monitoring dashboard and map shows the  status, signal strength, location etc.*

    High speed 4G LTE & Wi-Fi Network

    ・LTE Cat.4, 2x2 MIMO, 150M downlink and 50M uplink

    ・LTE Cat.6 with 2CA, 2T2R MIMO provides 300M downlink and 50M uplink

    ・4G/3G/2G full cellular network compatibility

    ・Support GPS for location services

    ・IEEE 802.11ac compliant & backward compatible with 802.11a/b/g/n

    ・Selectable 5G/2.4G Wi-Fi for local coverage, up to 866Mbps bandwidth

    Programming Environment

    ・GCC C/C++ cross development tool chain

    ・Ash, bash* System Shell vim, nano* text editor

    ・Lua, Perl*, Python* programming language

    ・Optional software kit for IEC 60870–5–101, IEC 60870–5–104

    Rugged Design for Wayside Surveillance, ITS Application

    ・EN50121-4 railway trackside EMC certificate design for Industrial IoT, ITS applications

    ・Effective heat dissipation design for operating in -40~75oC environments

    ・CE Marking

    ・IEC61000-6-2/IEC61000-6-4 heavy industrial EMC compliance
