RS-232/485/422 Serial port server, 1 10/100M RJ45 port, -40°C to 85°C, single power supply 12-60VDC

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

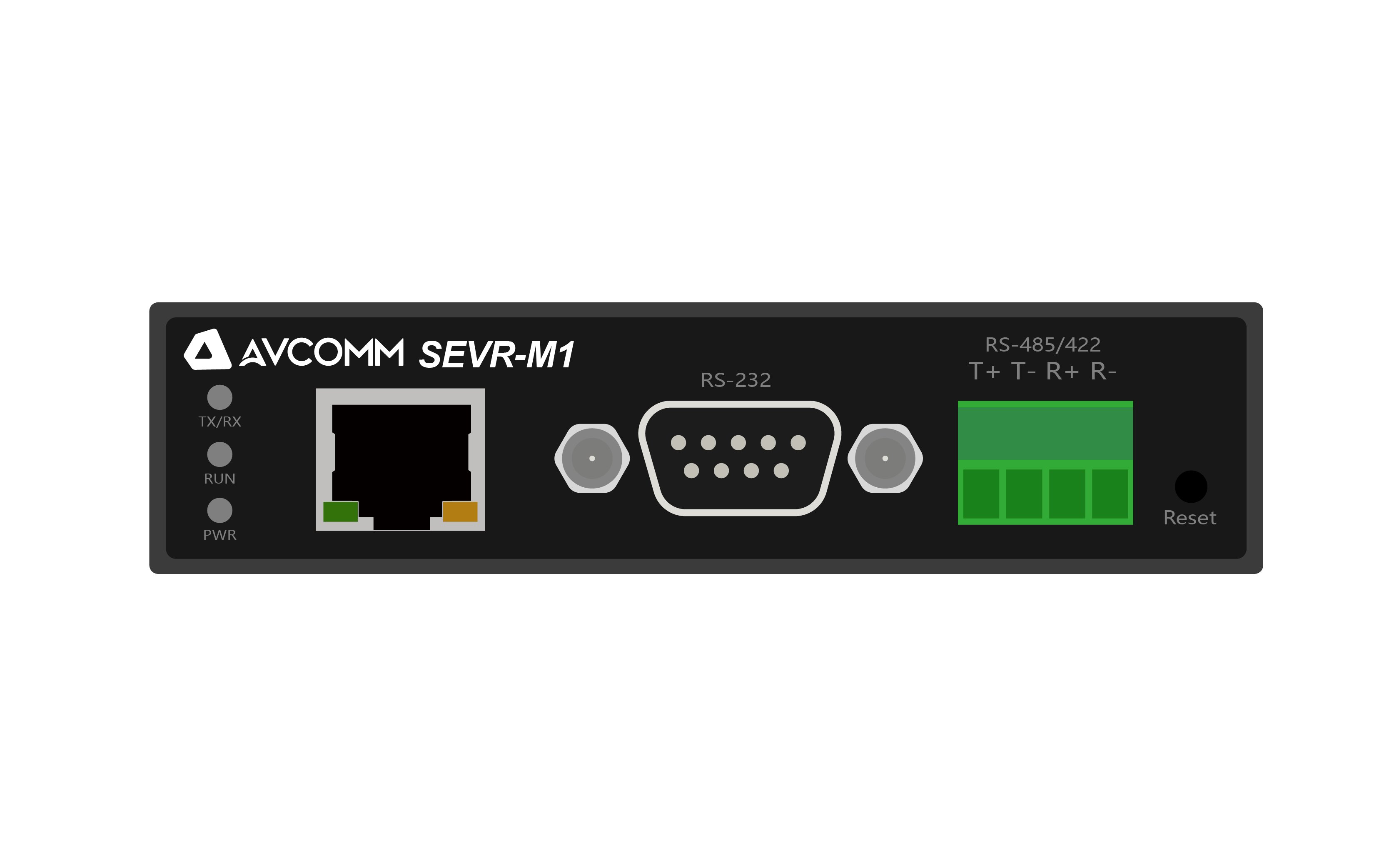

SEVR-M1serial device server provides serial port to Ethernet port function. lt convertsRS232/485/422 port to TCP/IP port, allows bidirectional data transmission between RS232/485/422&TCP/IP. This makes the serial device support TCP/IP function. It supports IEEE 802.3AF standard, thePOE function greatly extend the communication of serial devices

Product Features:

• Processor:150MHz

• Storage:Data cache space ≥ 60KB per port

• Network port: RJ45 interface 10/100M (embedded 2KV electromagnetic isolation, surge 10/700us common mode: 2000V/differential mode 1000V) Adaptive MDI/MDI-X

• POE standard: Support IEEE802.3AF standard

• Network protocols: IP, ICMP, UDP, TCP, HTTP, TELNET, DNS, DHCP

• System support: Windows /XP/2003/win7/win8/win10 32/64bit

• Operation modes: VCOM, TCP SERVER, TCP CLIENT, UDP, Serial Telnet Mode , Remote Pair mode, RFC 2217, Modbus TCP server, Modbus TCP client

• Operating current:350mA@12V max

• Power connector:5.08mm 3Pin terminal block and DC socket • Operating temperature:-40 ~ +85°C

• Storage temperature:-40 ~ +85°C

• Relative Humidity:5% ~ 95%RH,Non-condensation • Number of hosts: 4 hosts can be connected simultaneously • Configuration method:Web browser, VCOM Utility, Telnet

• Number of serial ports: 1, DB9 connector and 3.81-4PIN terminal

• Serial port protection: RS-232/485/422 surge 10/700us common mode/differential mode 0.5KV

• Baud rate:300-921600bps

• Check bits:None, Odd, Even, Mark, Space

• Data bits:7, 8

• Stop bits:1, 1.5, 2

• Flow Control:RTS/CTS, XON/XOFF

• Supply voltage: 5V (4.75~5.25V), 12-36VDC, 12-60VDC, POE power supply optional, surge 1.2/50us common mode:2000V/differential mode 1000V

• ESD protection: 6KV for whole machine contact, 8KV for air
